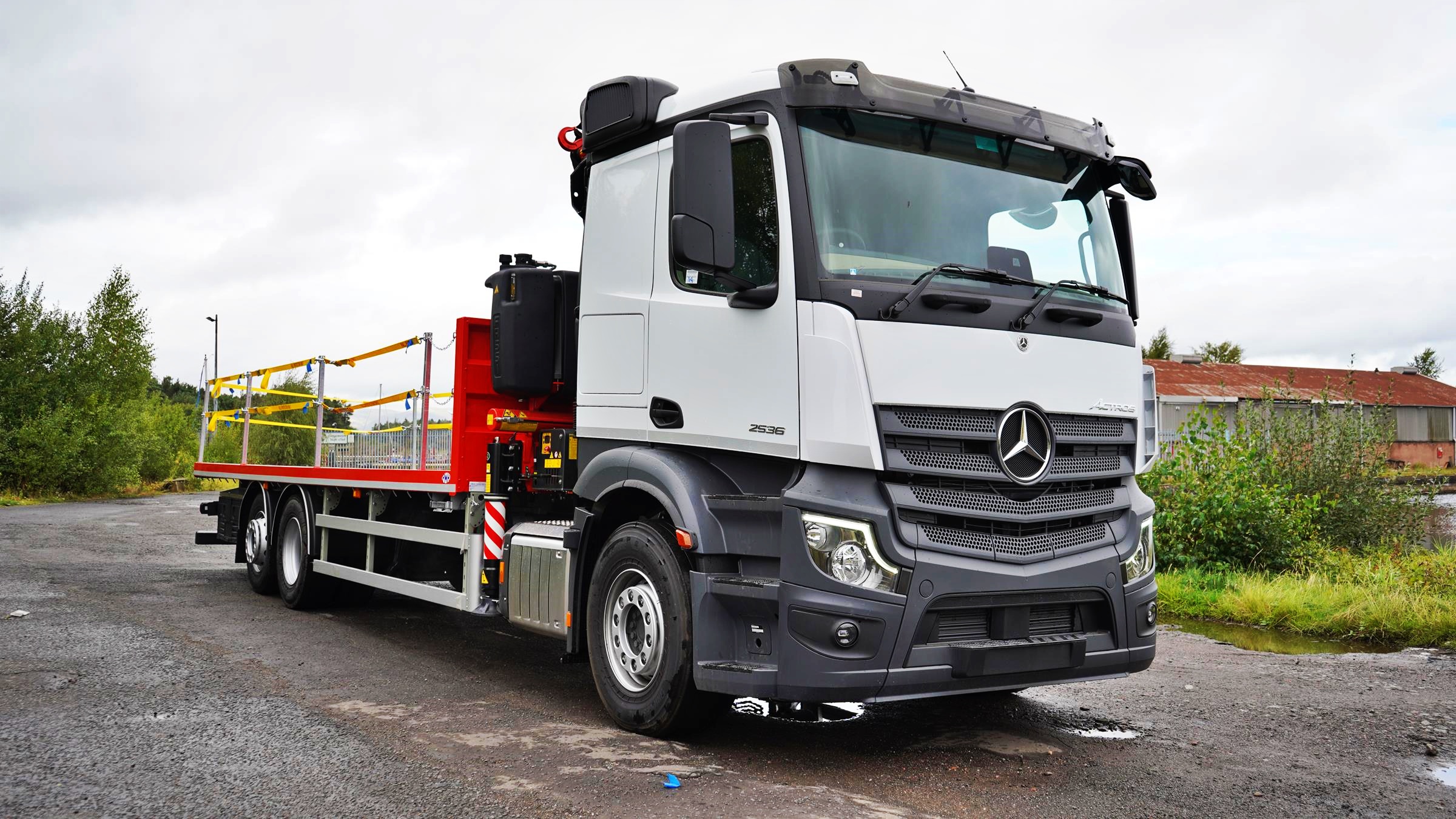

New 2022 Mercedes-Benz Actros 26-tonne Flatbed with FASSI F235A.0.23 e-active Crane

26-tonne Flatbed FASSI F235 Flatbed Crane Trucks
New 2022 Mercedes-Benz Chassis
Mercedes-Benz new Actros distribution 2533L 6x2
S-cab ClassicSpace Day Cab, 2.30 m, tunnel 320 mm
Euro 6(E) Engine
330hp
Mercedes 12-Speed PowerShift 3 Automatic Gearbox
Exhaust brake
VDO Tachograph
Radio, with USB connection and Bluetooth
Fleet management system FMS
Driver's suspension seat
Fold-up co-driver's seat
Central locking
Electric windows
Lane Keeping Assist
Attention Assist
Active Brake Assist
Electronic Parking brake
Speed limiter, 90 km/h (56 mph), ECE
Cruise control
Air conditioning system
Condensation monitoring, for compressed air system.
Tinted Windscreen
Heated Front Mirror
Flashing brake lights during emergency braking
Parking brake, an acoustic warning
Front compressed air supply connection
Bumper, with steel corners
Air deflectors, corner panels
Reversing buzzer
PTO MB 131-2c, pump
Differential lock, rear axle
Rear Air Suspension
Rear lift and Steering Axle
Electronic braking system with ABS and ASR
Disc brakes on front and rear axle
Sun visor, exterior, transparent
Fog lamps, LED daytime running lamps
2 LED rotating beacons
Kerb mirror
Front axle: 8,000kg
Wheelbase: 6100mm
Gross Vehicle Weight: 26,000 kg

Tyres
1st Axle:2x 315/70 R 22,5 Bridgestone
2nd Axle:4x 315/70 R 22,5 Bridgestone
3rd Axle:2x 315/70 R 22,5 Bridgestone

Body
Built to Maximum Length Flatbed Body
Lashing Rings
28mm Keruing Hardwood Floor
Galvanised Sub-Frame
Rope Hooks
Full height alloy headboard with alloy plank infill
LED Worklights on Headboard
Fall Arrest System
Two Tool Boxes

Crane Being Fitted
Fassi crane F235A.0.23 e-active
Radio remote Fassi RCS radio with mini control handle - 6 linear lever functions
Outriggers Super-extra hydraulic extendability of o/r (Total ext. mm 6650 - weight kg 110)
Stability control FSC/H for hydraulically extendable crane outriggers.
Outriggers lock for crane outriggers & overheight warning
Work lights n. 2 LED work lights mounted on secondary boom
Orange LED lights on crane outriggers
Digital rotation control
Internet of Cranes - SIM-based connectivity.
IE742 single feeding box (mounted)
Inverted rotation

Lifting Duty
1835kg  @ 10.10m
2335kg  @ 8.10m
3120kg  @ 6.20m
4265kg  @ 4.60m
4520kg  @ 4.35m
9325kg  @ 2.00m

The FASSI F235A.0.23 e-active strikes the perfect balance between performance and lifting momentum. A firm favourite with our scaffold companies, the F235 provides the reach and lifting power to easily tackle the day-to-day lifting of scaffolding and equipment.
